Install Filler Pieces for IKEA Kitchen Cabinets

Filler pieces

When you install IKEA kitchen cabinets filler pieces are used between your cabinets and walls for a streamlined appearance, and to ensure there is enough room to fully open doors and drawers. They are especially useful if your walls are not perfectly straight.

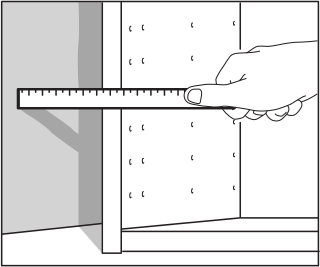

Check the wall with your spirit level to see if it is straight. If the wall is even, measure between the wall and the cabinet and mark this distance at the top and bottom of the filler piece.

If the wall is not level and flat, the filler piece must be cut to fit to the wall’s shape. To do this, you’ll need a filler piece, measuring tape, small block of wood about 1-1 1/3” thick and pencil.

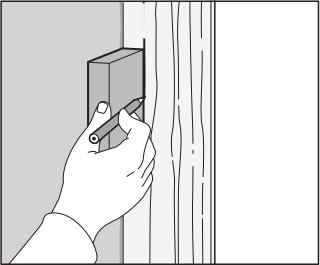

Cut the filler piece so it’s the same height as the cabinet. Place the edge of the filler piece against the wall. Hold the block of wood flat against the wall with the pencil against it. Keep them pressed against the wall as you slide them down the length of the filler piece. Now you have traced the shape of the wall onto the filler piece. Cut along your trace line.

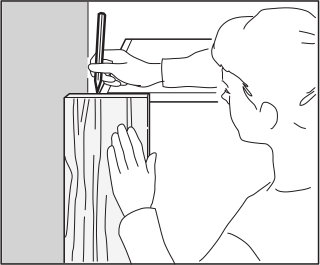

Place the newly cut edge of the filler piece against the wall (it should fit perfectly). Mark the edge of the cabinet on the top and bottom of the filler piece. Draw a straight line from these points and cut.

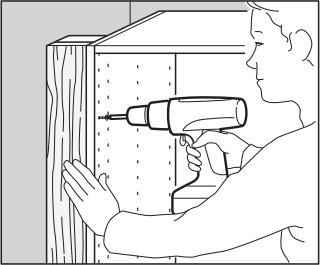

To ensure the filler piece stays in place, first fasten a support strip to the wall. Drill holes in the cabinet for the screws you’ll use to fasten the cabinet and filler piece together. Put the filler piece into place. Put screws through the holes you have drilled. When all your filler pieces are in, caulk around each one with silicone for an airtight seal.
